Fire Protection

At V SQUARE enterprises, we offer advanced fire prevention solutions to help detect, contain, and suppress fires before they become a disaster. We offer state-of-the-art extinguishers & suppression systems and the latest detection and alarm technologies to protect life, property and operations.

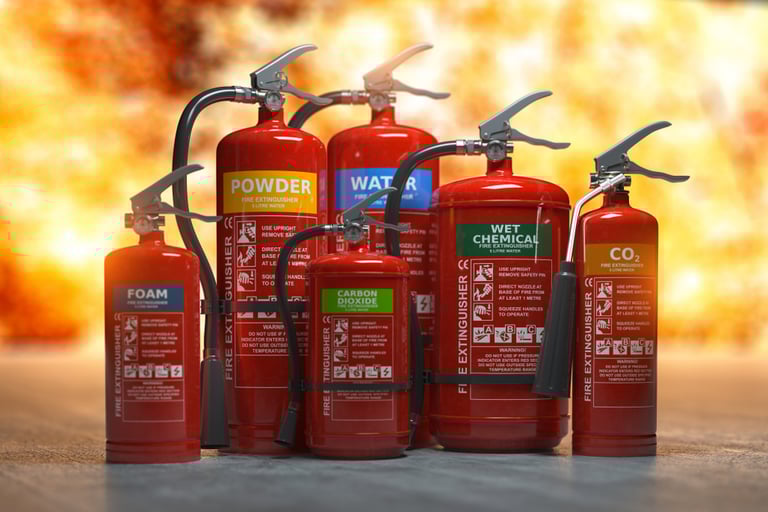

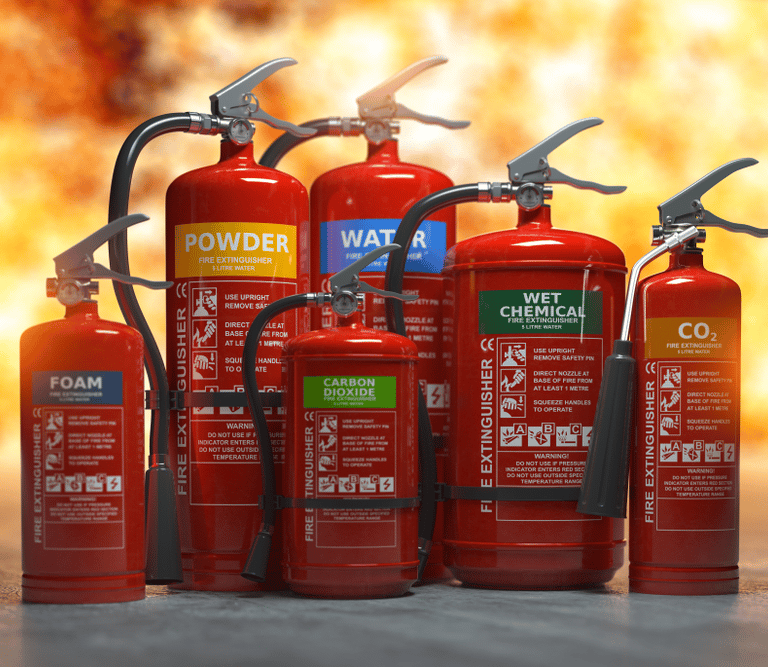

Fire Extinguisher

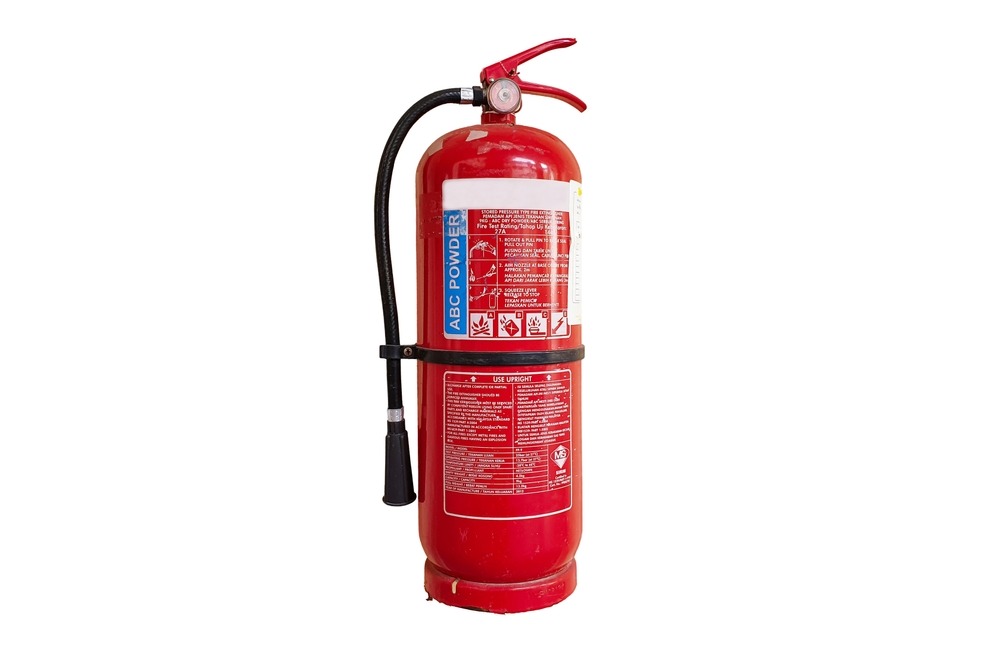

ABC Type Fire Extinguisher

Portable One Shot Water-based 50/90% ABC MAP Fired Extinguishers are designed for high performance, simple operation method and rapid Fire knock down ability for the protection of Light, Ordinary and high hazards.
These portable and compact extinguishers are suitable for industrial, commercial and Domestic Fire protection.
The available sizes: 1Kg , 2Kg , 4Kg , 6Kg and 9Kg

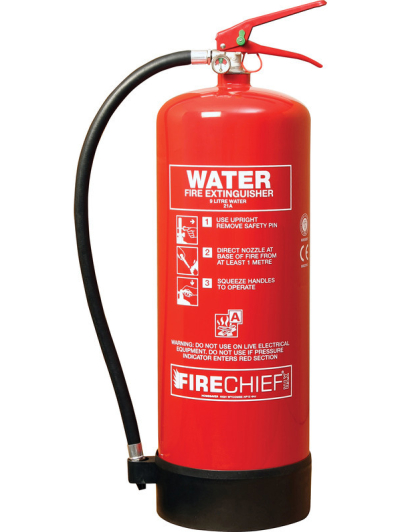

Water Fire Extinguisher

Stored Pressure Water Based Fire Extinguishers are specifically designed to extinguish fires involving Class A combustibles, such as wood, cloth, trash and other materials that leave ash.
These types of hazards are normally found in office environments and some industrial locations, including warehouse and oxidizing chemical storage areas.
Available in : 6Ltr, 9Ltr

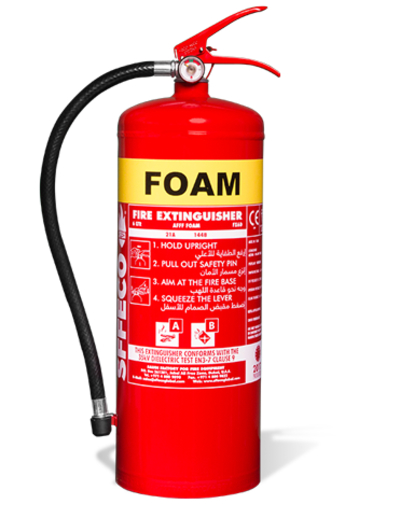

Foam Fire Extinguisher

Foam Based Stored Pressure Fire Extinguishers are intended for use on Class A and B combustibles, which include wood, cloth, volatile liquids and other materials that produce an ash.
This type of hazard may be found in an office environment, or some industrial setting, as well as in bigger warehouses, with oxidizing chemicals or storage.
Available in : 6Ltr, 9Ltr

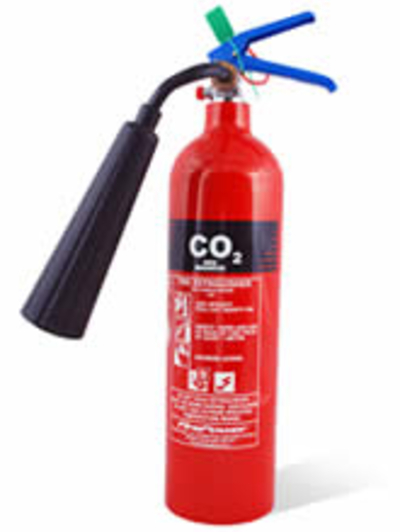

CO2 Gas Fire Extinguisher

CO2 fire extinguishers are extremely effective against B and C class of fires.
This type of extinguisher is specifically designed to combat fire break in IT Rooms, Labs, Server Rooms, Food Storage and Processing Areas, etc.
Available in : 2Kg, 3Kg, and 4.5Kg

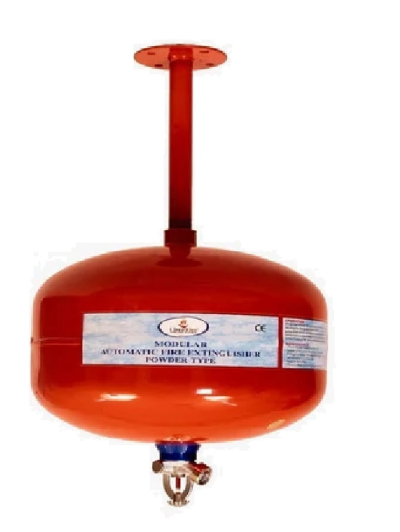

Modular Type Fire Extinguisher

ABC Powder/Clean agent Automatic Modular Type Fire Extinguisher is ideal for using in unoccupied rooms or spaces.
Our product offers fire safety protection in enclosed areas where fire could cause extensive damage if not detected and extinguished in time.
Available in : 2 Kg, 5 Kg, and 10 Kg

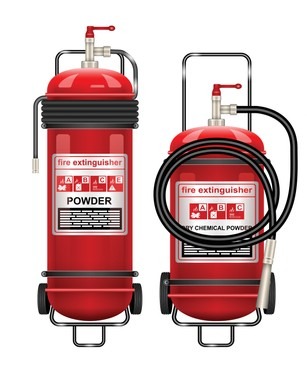

Trolley Type Fire Extinguisher

DRY POWDER MAP 50% TROLLEY MOUNTED fire extinguishers combine superior performance, an easy method of operation and fast fire knock down ability.
They are appropriate for extinguishing fires involving freely-burning materials, petrol & oils, gas & electrical equipment.
Extinguishers contain high-performance powder for high fire ratings.
Available in : 25 Kg, 50 Kg and 75 Kg

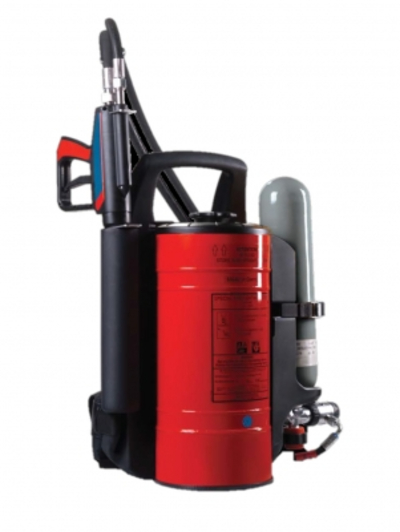

Water Mist Backpack Fire Extinguisher

The WATER-MIST STORED PRESSURE fire extinguishers provide a quick, effective means of combating most categories of fires and replacing other categories.
The foam forms a seal over the surface prohibiting re-ignition.
Most useful for multi-risk applications, also suitable paper, wood, soft furnishings, electrical equipment such as computers and printers, small oil and fat fires, clothing and gas flames
Available in : 10Ltr with Back pack

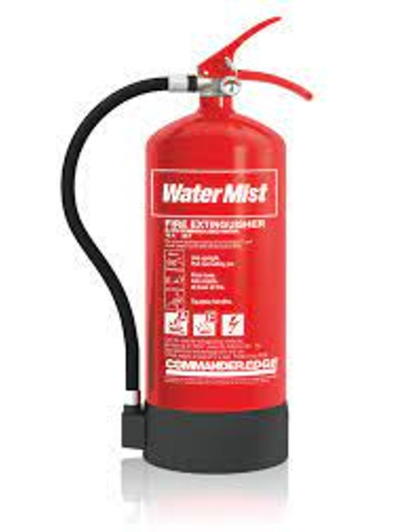

Water Mist Fire Extinguisher

Water-Mist Stored Pressure fire extinguishers offer a fast, robust means of extinguishing almost all types of fires and replacing other extinguishers.
Water mist foam seals over the surface of the object on fire to prevent re-ignition.
Good for multi-use risk, and also suitable for paper, wood, soft furnishing, electrical equipment (i.e., computers and printers), small oil and fat fires, clothing and gas flames.
Available in : 2 Ltr, 3 Ltr, 4 Ltr and 6 Ltr

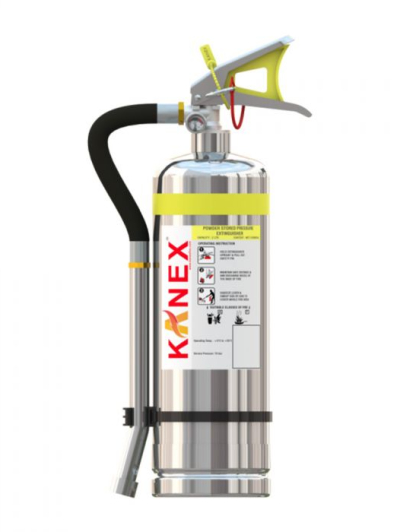

Kitchen Type fire Extinguisher

"K Class" Kitchen Fire Extinguishers are made to combat some of the hardest fires like hot grease, cooking oil and fat fires in kitchen and food preparation areas.
Available in : 2 Ltr , 3 Ltr, 6 Ltr, 9 Ltr

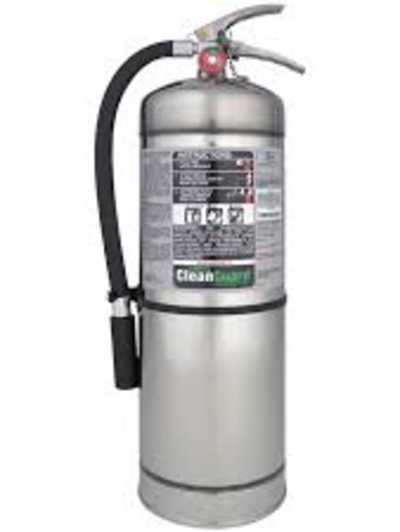

Non Magnetic Type Fire Extinguisher

Non-Magnetic Carbon Dioxide Clean Agent Fire Extinguisher is made with specially selected components.
It has been independently tested and received a MR Conditional Rating.
This rating indicates that this extinguisher has been tested in a 7-Tesla MR imaging system and determined to pose no magnetic safety risk.
Available in : 4.5 Kg

Fire Hydrant

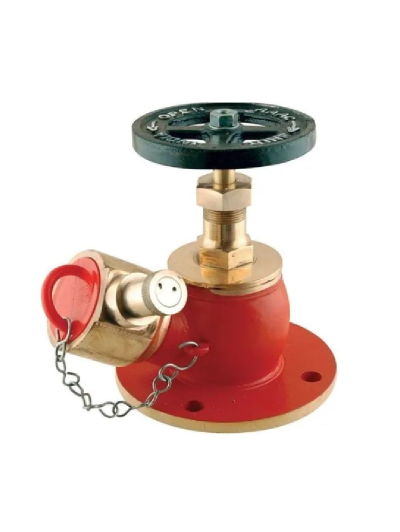

Single Headed Hydrant Valve

63mm Single outlet Landing Valve IS:5290 Type A, ISI Marked, having 75mm NB inlet & 63mm Female Instantaneous outlet. 200mm Flanged
Material of Construction : Gun Metal/Stainless Steel

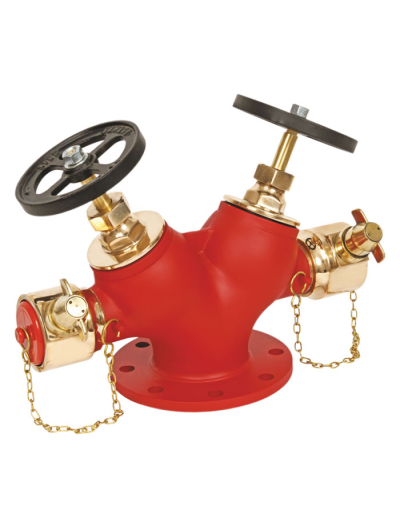

Double Headed Hydrant Valve

63mm Double Controlled Hydrant Valve, 100mm NB Inlet & 63mm, 2 nos. Female Instantaneous outlet as per IS:5290 Type B.
Material of Construction : Gun Metal/Stainless Steel

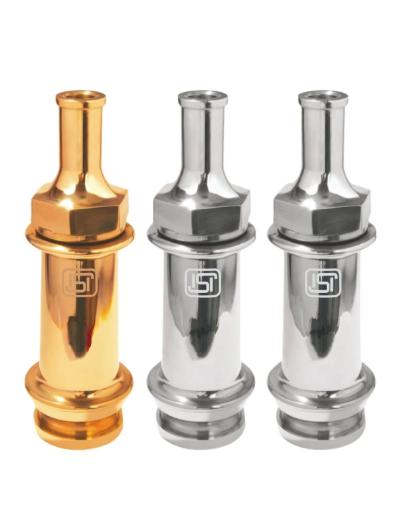

Short Branch Pipe with Nozzle

63mm Branch Pipe with Nozzle IS:903 ISI Marked.
Material of Construction : Gun Metal/Stainless Steel

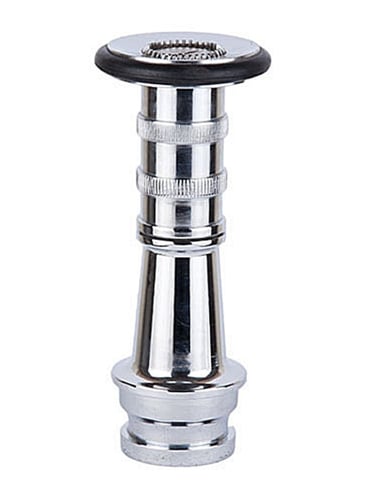

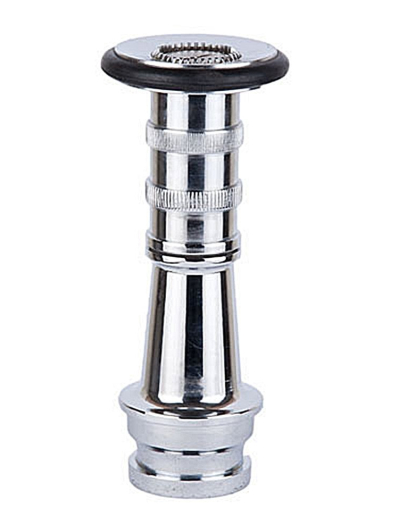

Triple Purpose Nozzle

Gun Metal 63mm Universal Nozzle as per IS:2871, capable of giving Jet and Spray

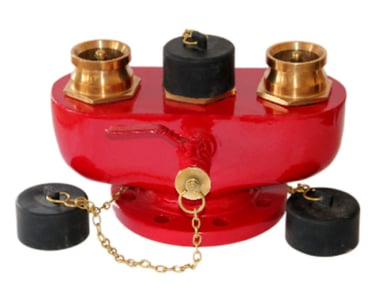

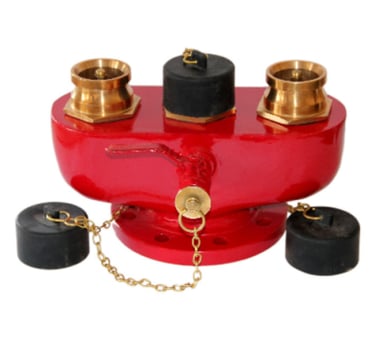

Fire brigade Inlet

Pumping in Breech /Fire Brigade Inlet connection, 4 way having 4 nos. 63mm Male Inst. Inlet with built in NRV & 140mm NB flanged outlet, Rubber Dust Caps.

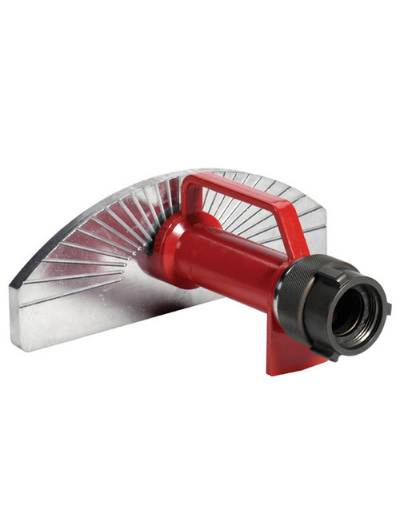

Curtain Nozzle

Capable of giving 180 degree Curtain spray to 20’ to 25’ feet height with 63mm Gun Metal male Inlet.

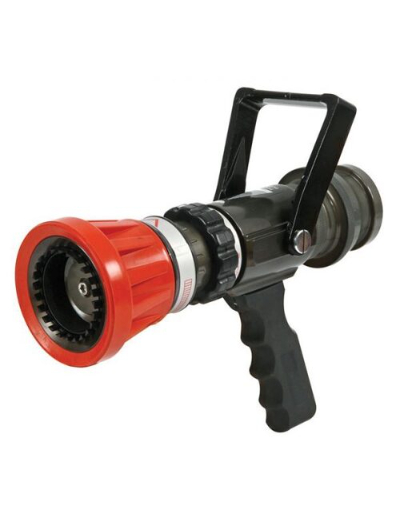

Turbokador 500 Premium Multipurpose Nozzle

Selectable Flow Rate - 150, 250, 350, 500LPM & Flush
Light Weight and Easy to Operate
The Operational Handle allows quick opening/closing of nozzle
Pistol Grip
Stream patterns can be changed by rotating head ring - jet, fog & wide angle fog
Spinning teeth for better fog pattern... MOC: Aluminum alloy - Hard anodized, Working Pressure: 6 bar, Weight: 2.5 KG, Inlet: Swivel Inlet.

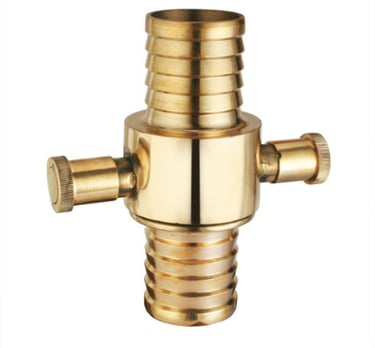

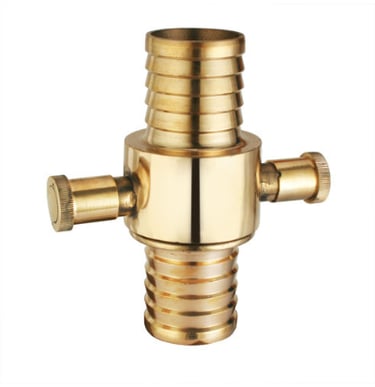

Hose Coupling

63mm Male & Female Instantaneous Delivery Hose Coupling Multi-serrated IS: 903 ISI marked 63mm only. Test Pressure : 21 kgf /cm2. & BS Type available
Material of Construction : Gun Metal/Stainless Steel

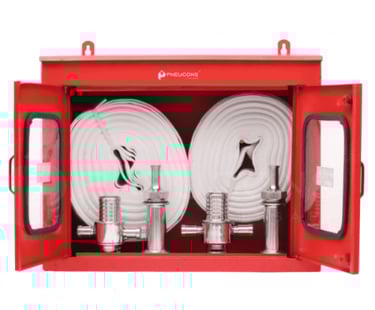

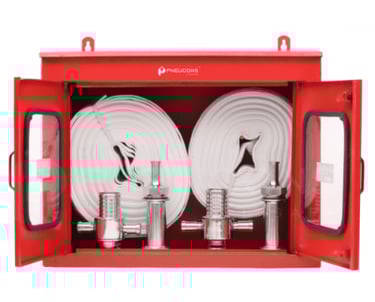

Hose Box

Wall mounting type in 750mm X 600mm X 250mm size to accommodate 2 lengths of 7.5 mtr. or 15 mtr. hoses and a branch pipe with glass covered double door with lock and key arrangements
Available in MS or FRP

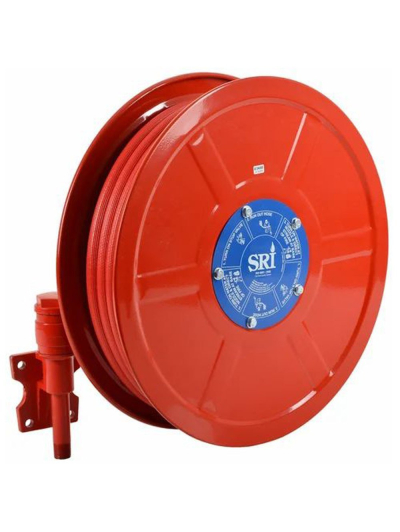

Hose Reel & Drum

Swinging wall mounting type made of mild steel sheet to accommodate 30mtr or 36.5mr of 19mm dia Rubber Hose with nozzle along with suitable bracket for fixing on the wall.
Nozzle – ABS/Gunmetal/ Aluminium

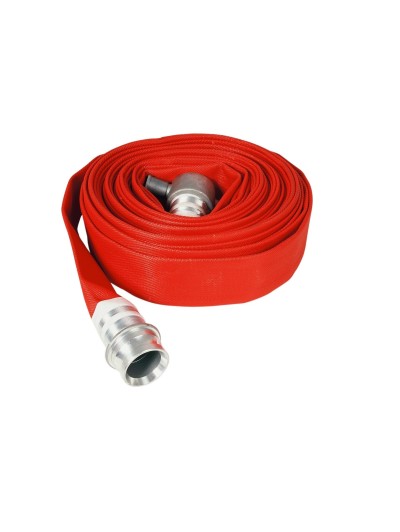

Flexiline Hose

Internally Rubber lining combined with closely woven polyester fiber. Wrap made of multi ply high tenacity fibers. Ribbed for Hose protection and easy handling. Bearing ISI Mark, IS: 636 Type B
Length Available : 7.5mtrs ,15 mtrs, 22.5mtrs, 30mtrs

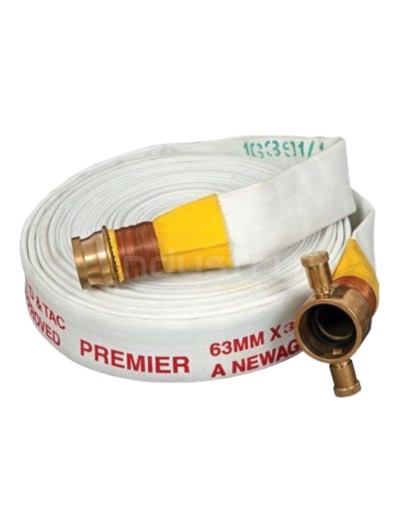

RRL Hose

Externally Electrometric coated all synthetic jacketed, rubberized fabric reinforced rubber lined (R R L), non percolating flexible fire fighting delivery hose, resistant to liquids, chemicals, abrasion & heat. IS 636/1988 Type A ,BS 6391 Type - 1 ,TAC approved, Bearing ISI mark
Length Available : 7.5mtrs ,15 mtrs, 22.5mtrs, 30mtrs

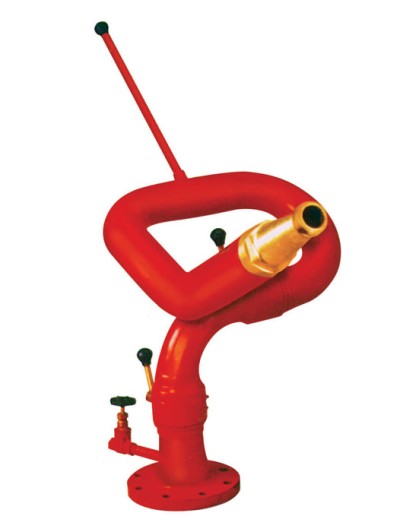

Water Jet Monitor

Stand Post type Water Monitor Barrel size & Flanged Inlet as per IS:8442 Type, M.S. Seamless Pipes, Hot dip galvanized, G.M. Swivel joints

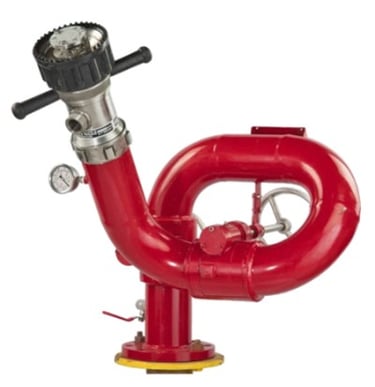

Long Rang Water Foam Monitor

Stand post mounted type, Horizontal 360° & vertical +90° & -45° rotation, Hand-wheel for rotation of swivel joint, Bronze geared swivel joint with self locking, Can be used with jet nozzle or jet spray nozzle

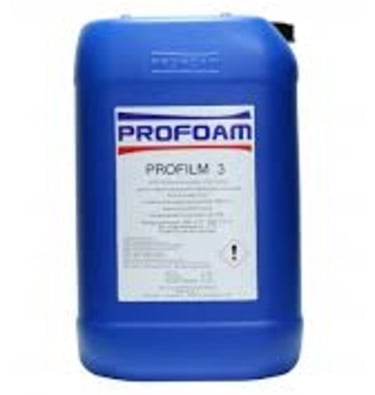

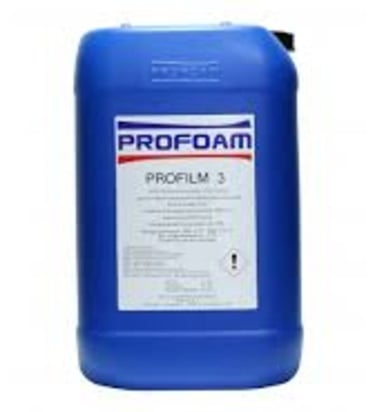

Aqueous Film Forming Foam

Synthetic based foam compound mixed with addition of fluorodensides processing the property to create the film of water solutions that floats on top of non-polar flammable liquids as per IS:4989 with ISI Mark (Available in: 3% or 6% Foam Compound in 20 ltrs HDPE Can)

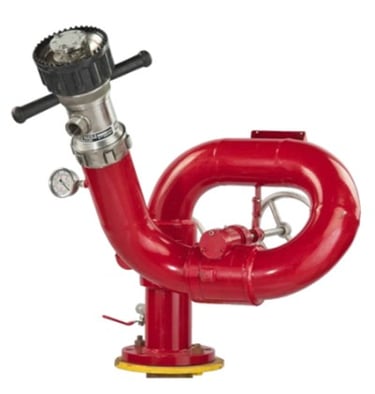

Long Rang Water Foam Monitor

Stand post mounted type, Horizontal 360° & vertical +90° & -45° rotation, Hand-wheel for rotation of swivel joint, Bronze geared swivel joint with self locking, Can be used with jet nozzle or jet spray nozzle

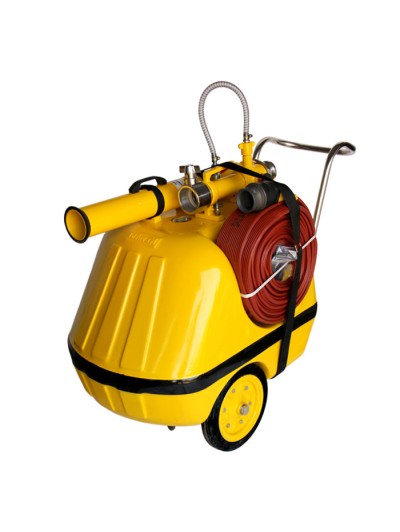

Mobile Foam Unit With FRP Tank

Portable Foam Mobile Trolley fitted with inline inductor and foam making branch pipe (without Hose & AFFF Liquid). Body is made of FRP or MS or SS
Capacity: 100 ltrs or 200 ltrs

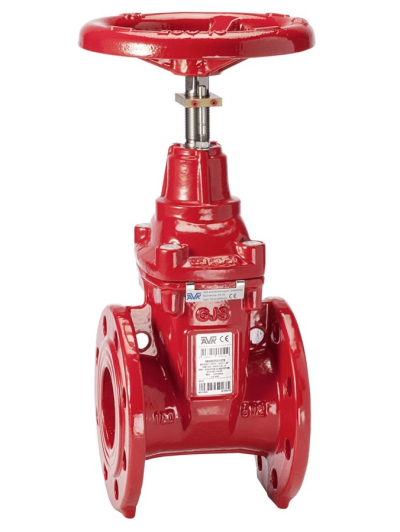

Gate valve

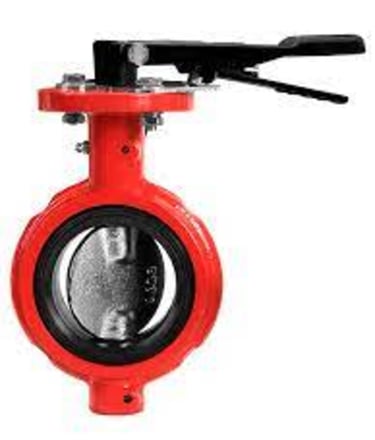

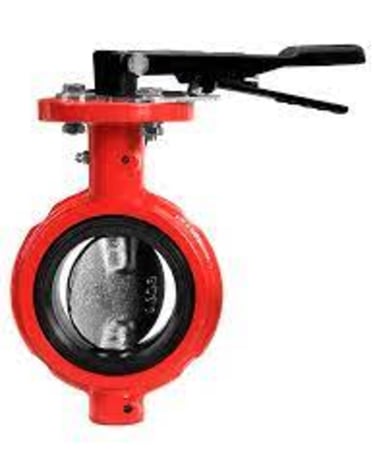

Butterfly valve

Fire Accessories

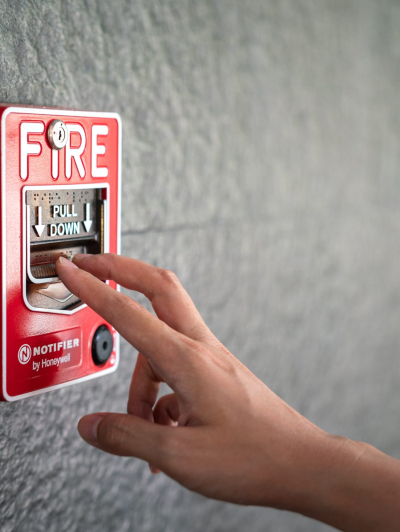

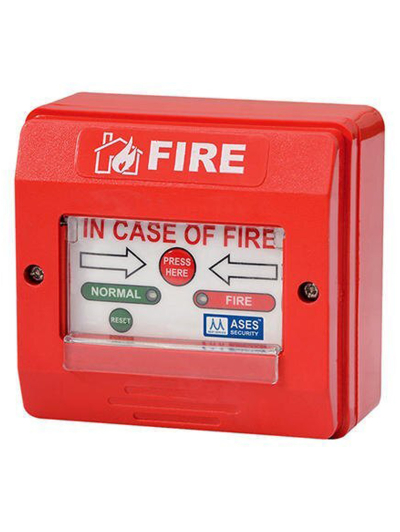

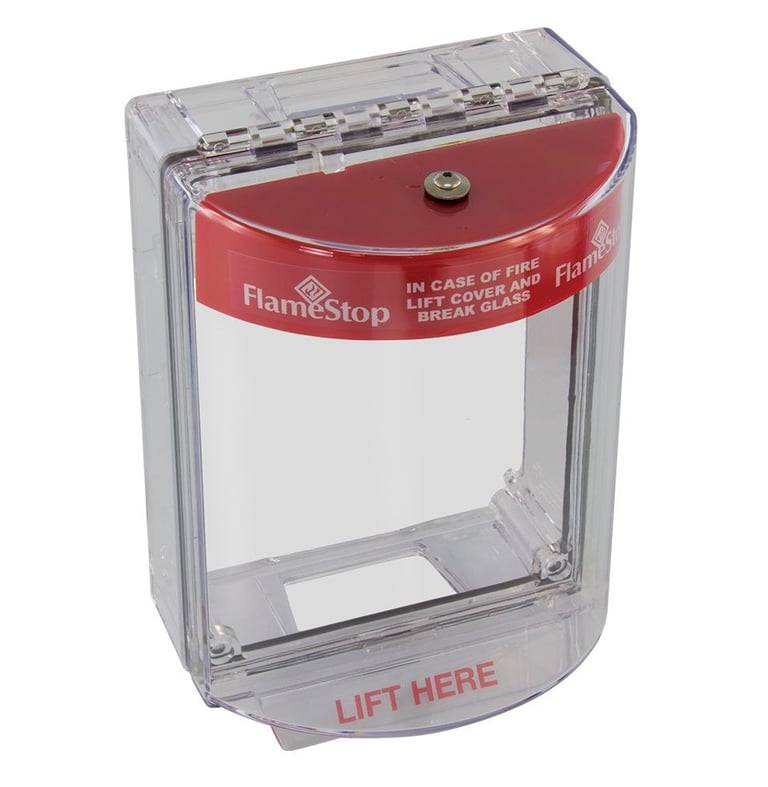

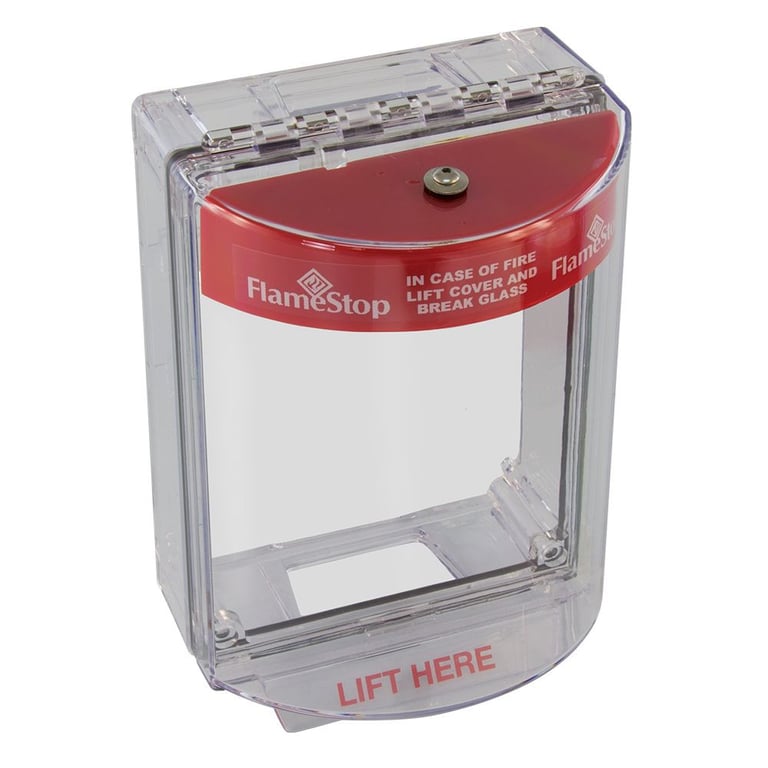

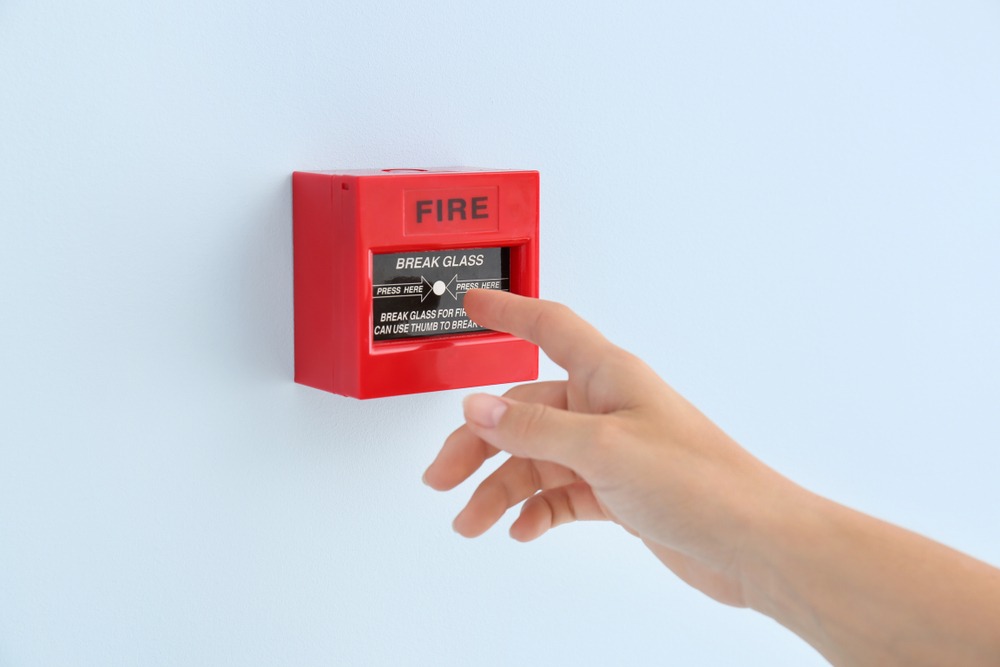

Manual Call Point

Features

UL Certified
Lift and pull
Break glass cover
Weather and Explosion proof versions(optional).
All stations offer hex screw or key lock access

Material

Painted Die Cast Housing
14 Ga plated steel black plate
Corrosion Inhibited surfaces
Terminal block (4 Position)
Single Gang Mounting
10 A , 120VAC snap Action Switch

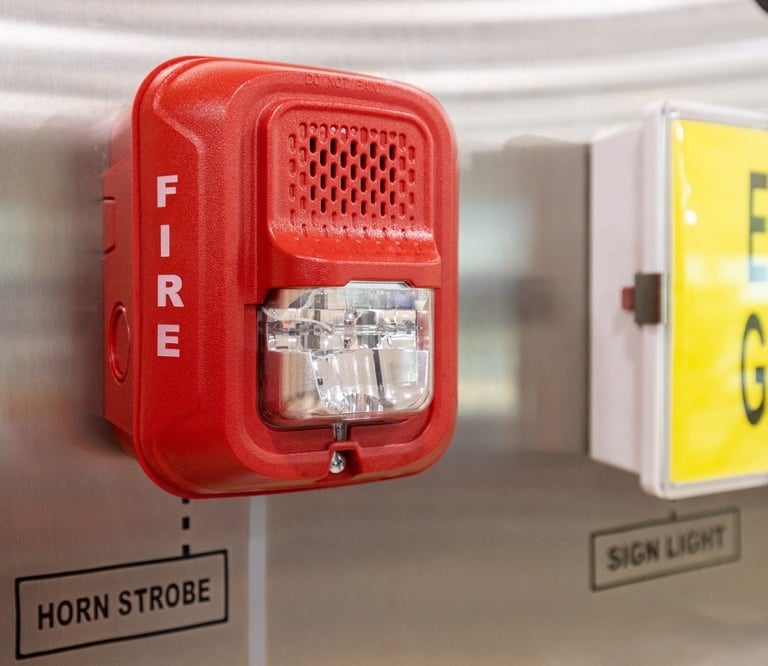

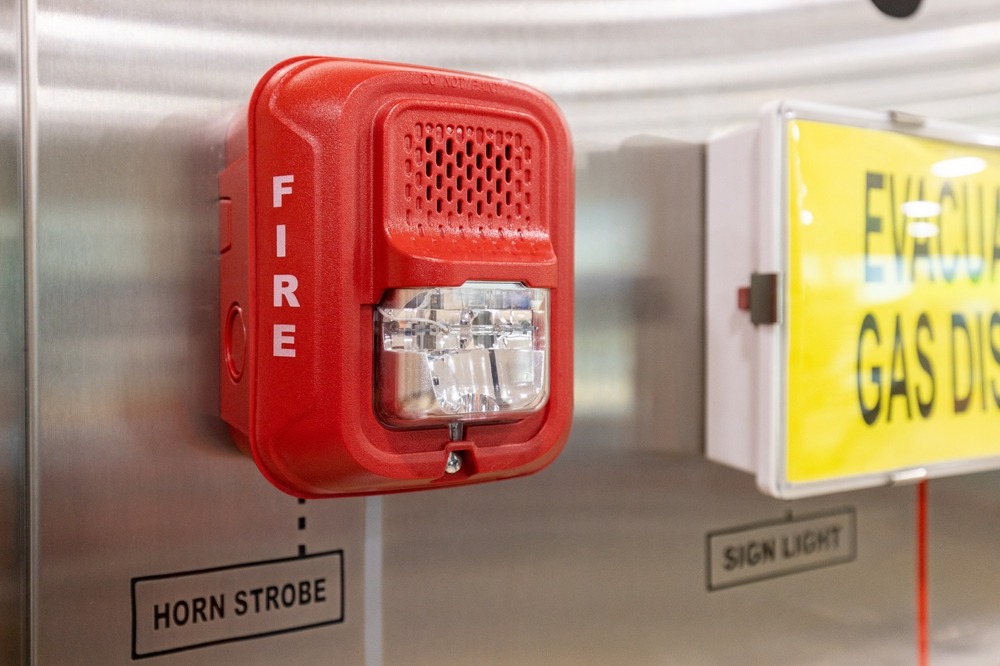

Hooters & Strobes

Features

Easy to install
Operates on 24VDC
100db at 30cm
Low Current
Ceiling/ Flush Wall Mount

Smoke & Heat Detector

UL Listed Analogue addressable smoke detector with 8 digit dip switches for ( 1 to 254) address settings, Dual LED indication for 360 degree visibility ,milky white in color, shall be polarity insensitive, Insect filter chamber, easy to install, advanced detection and communication protocol.

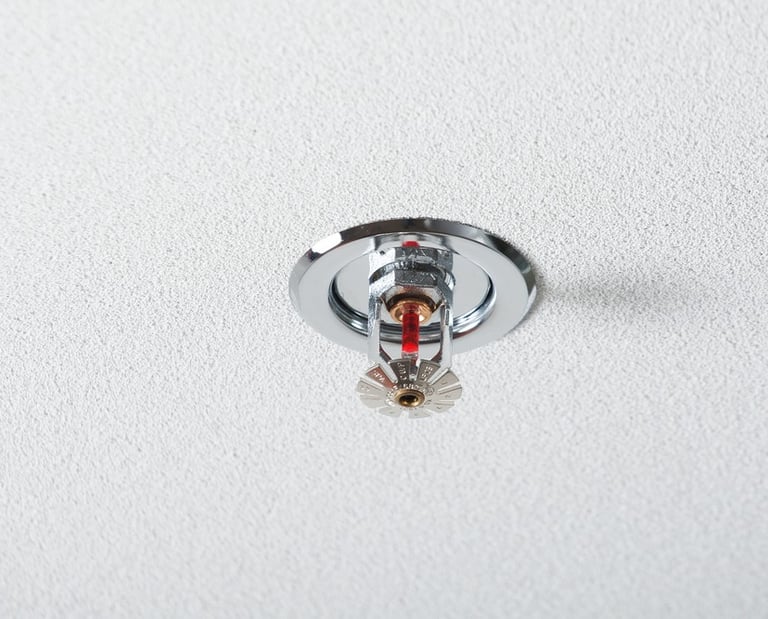

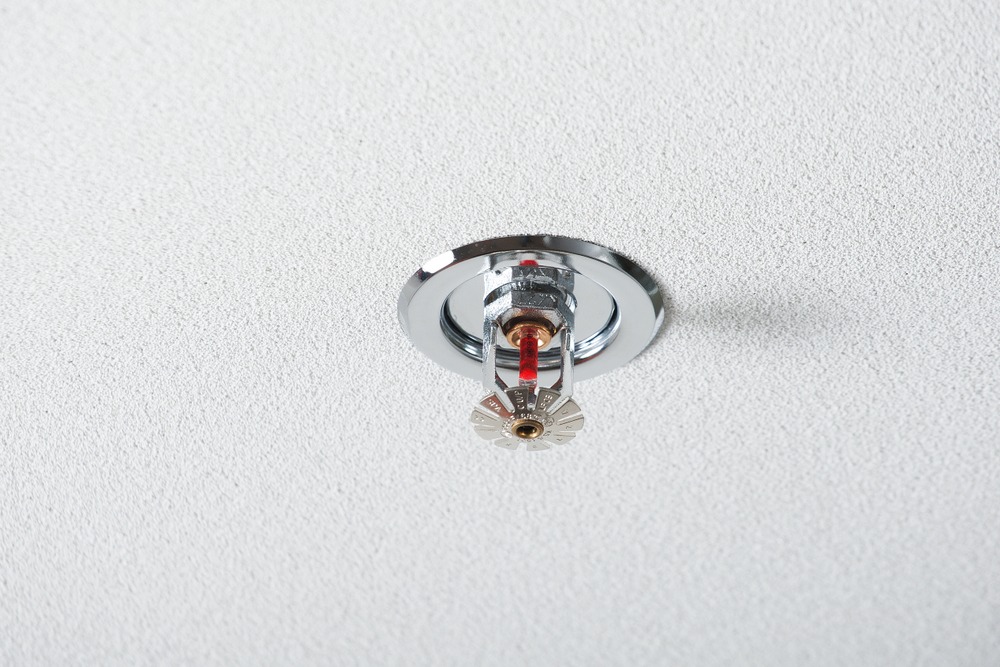

Sprinklers

Pendent Sprinkler is a small, thermosensitive, glass-bulb spray sprinkler available in several different finishes and temperature ratings to meet design requirements.
Sprinkler is UL Listed and FM Approved. During fire, the heat-sensitive liquid in the glass bulb expands, causing the glass bulb to shatter.
Water flowing through the sprinkler orifice strikes the sprinkler deflector, forming a uniform spray pattern in order to control or extinguish fire

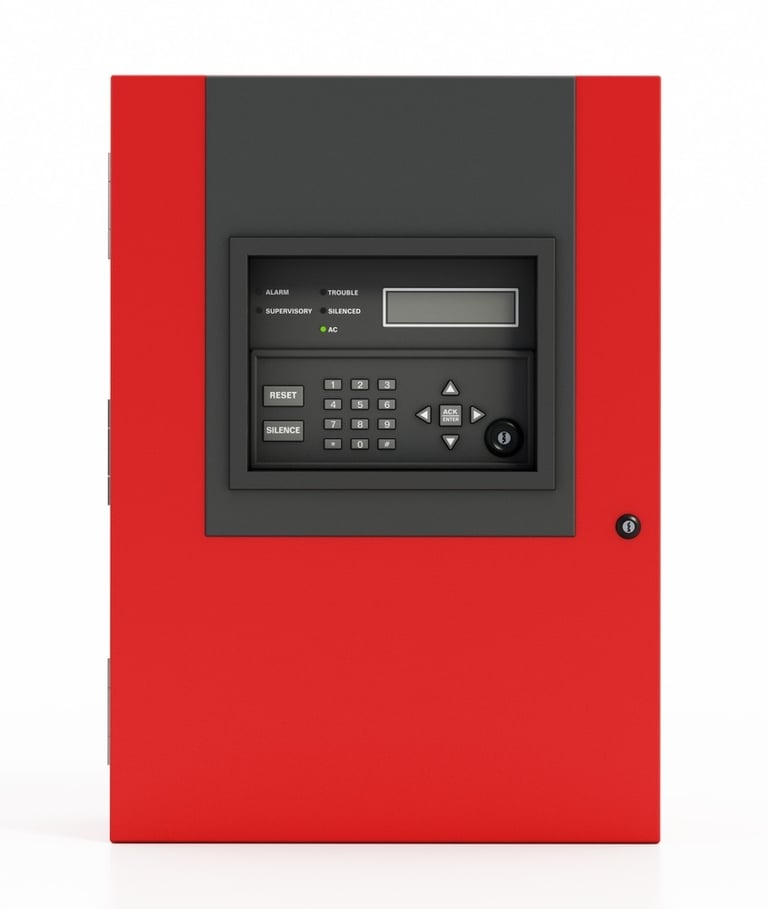

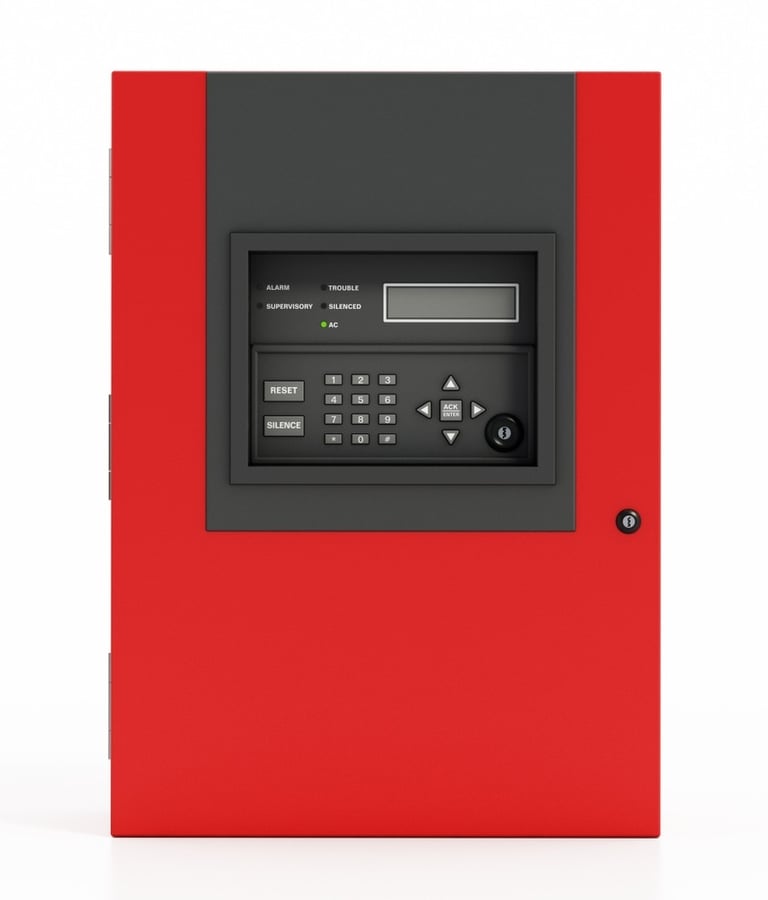

Fire Alarm Control Panel

UL listed – Single Loop Expandable Up To 4 Loop Analogue addressable fire alarm panel with 254 devices of any combination in a loop,1016 devices of any combination in a panel, Networkable up to 8 panels in a node. Touch key panel with USB inbuilt for Laptop connectivity. Front panel programmable with Loop redundancy.

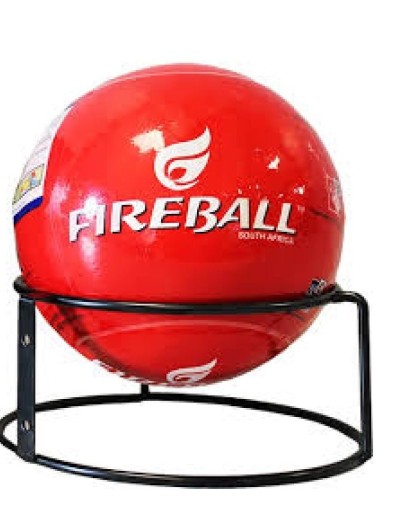

Fire Ball

Fire ball is a fire suppressant packaged in a compact and lightweight ball that self detonates in 3 to 5 seconds when it comes into contact with fire and disperses non-toxic chemicals to extinguish the flames in an area with a radius ranging between 86 to 107 square feet.
Usable for Class A, B and C Fires Home or Business. The Fire Extinguisher Ball is suitable for use on normal combustibles like wood, paper, and flammable liquids (Class A, B and C) it’s the ideal fire safety product for your kitchen, garage, car, or boat, when grilling or camping, and ideal for restaurants, offices, auto shops, and manufacturing facilities too.

Material

Dimension : Round and Weight 1.3 Kg
Discharge Time : 3 to 5 Second
Extinguisher Type : ABC Dry Powder

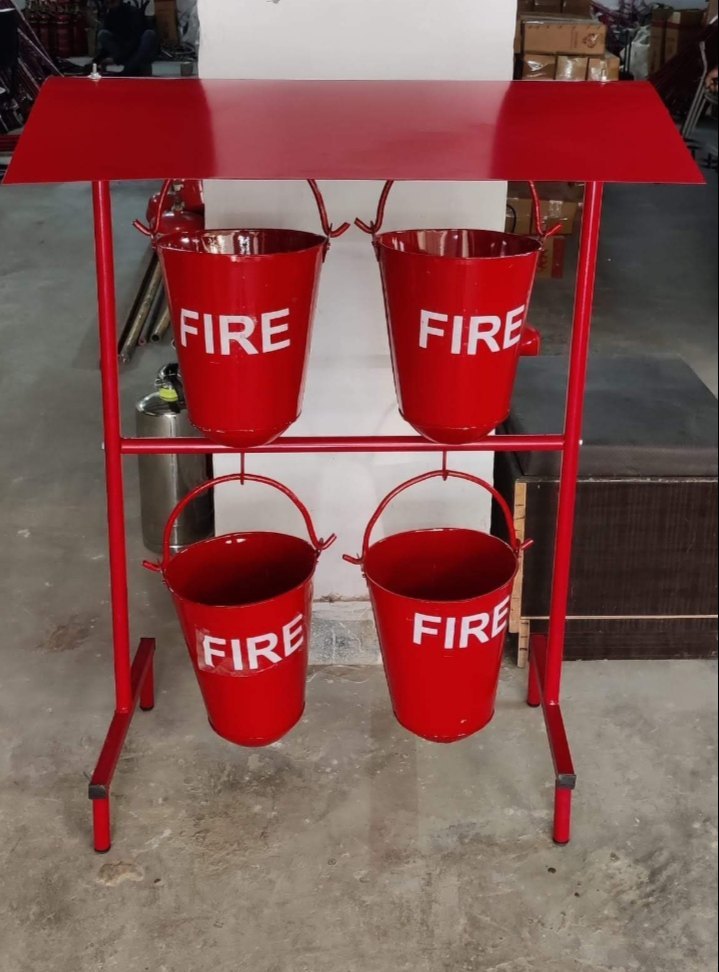

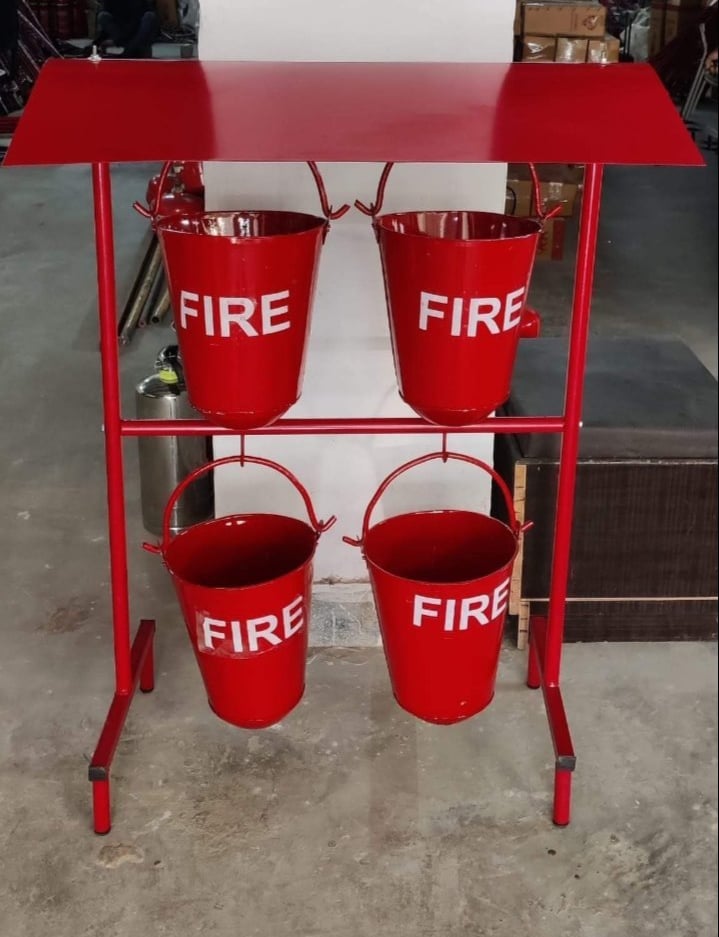

Fire Bucket & Stands

Type - Four Bucket Stand
Material - MS Square tube and 3Ft x 2Ft Galvanized sheet
Size - Height 3.5 FT ,3FT wide
Color - Red
Weight - 7 Kg
Features - IT can fold in for pieces. for easy Transportation. Roof project from dirt and rain four hooks provided to hang the bucket.hooks provided to hang the bucket.
Application - Fire Fighting operation at initial stage
